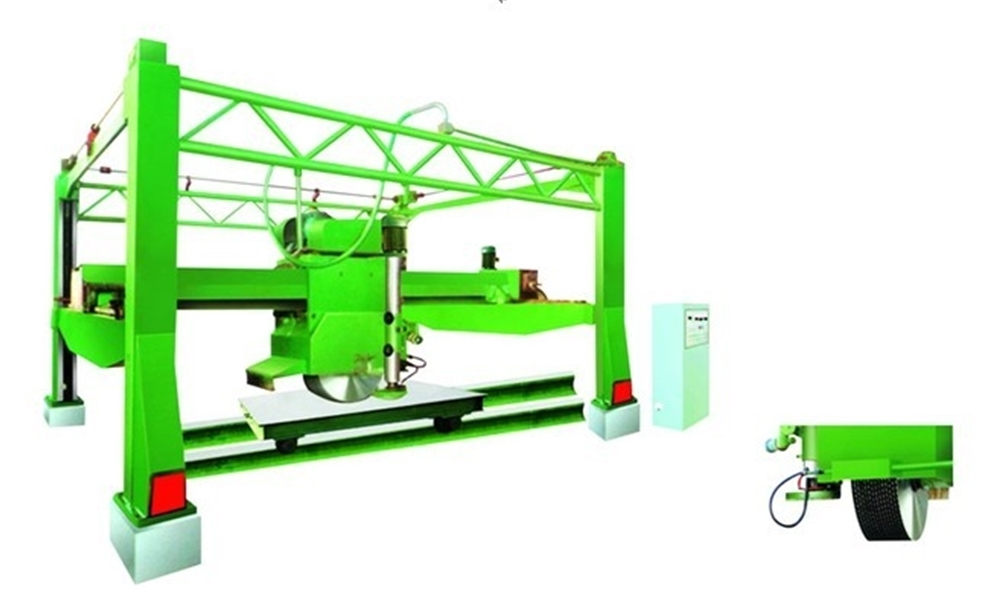

Name：DPJ20 Multi-Blade Two-Way Cutting Machine
Details
This machine is the main machine of granite slab production line which can cut out the stone blocks to slabs with certain thickness. Controlled by programmable fully-automatic system and executed by hydraulic transmission, this machine is an ideal equipment for processing granite, featuring reliable performance and high cutting efficiency.| Max. size of block (L×W×H) | 3200×2000×2000mm |
| Min. thickness of slab | 8mm |
| Elevating speed of bridge stand | 180mm/min |
| Dia. of vertical blade | Φ900～Φ1300mm |
| Dia. of horizontal blade | Φ400～Φ450mm |
| Cutting speed | 0～6000mm/min |
| Size of trolley(L×W) | 2500×2100mm |
| Overall dimensions | 7100×5500×5160mm |
| Total power | 102kw |
| Total weight | about 18000kg |
|
